SWITCHING REG, VOLTAGE-MODE, 7.5

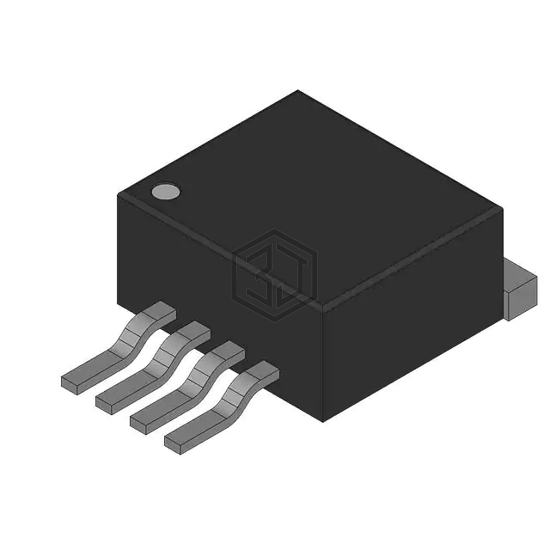

LM2596S-ADJ is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by National Semiconductor. SWITCHING REG, VOLTAGE-MODE, 7.5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - output 3A.
In Stock: 3,056
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | 37V |
| Current - Output | 3A |
| Frequency - Switching | 150kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | DDPAK/TO-263-5 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM2596DP-ADJ | TAEJIN | IC REG BUCK ADJ 3A 8SOP-PP | 99% | View |
| LM2595SX-ADJ/NOPB | Texas Instruments | IC REG BUCK ADJ 1A TO263-5 | 88% | View |
| LM2597MX-ADJ/NOPB | Texas Instruments | IC REG BUCK ADJ 500MA 8SOIC | 88% | View |
| LM2593HVS-ADJ/NOPB | Texas Instruments | IC REG BUCK ADJ 2A TO263-7 | 77% | View |
| LM2594HVMX-ADJ/NOPB | Texas Instruments | IC REG BUCK ADJ 500MA 8SOIC | 70% | View |
| LM2597HVMX-ADJ/NOPB | Texas Instruments | IC REG BUCK ADJ 500MA 8SOIC | 70% | View |
Submit your RFQ for LM2596S-ADJ and get a quote within 24 hours.
