7A, 200KHZ BIPOLAR, PSSO7

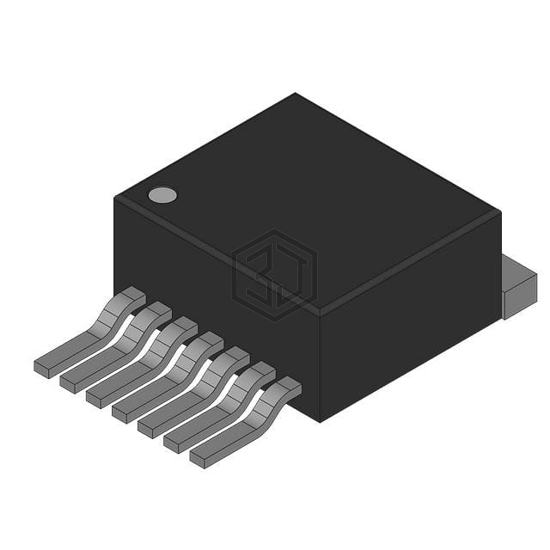

LM2586S-12 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by National Semiconductor. 7A, 200KHZ BIPOLAR, PSSO7. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA, current - output 3A (Switch).
In Stock: 228
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, Forward Converter |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4V |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 12V |
| Voltage - Output (Max) | - |
| Current - Output | 3A (Switch) |
| Frequency - Switching | 100kHz ~ 200kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
| Supplier Device Package | DDPAK/TO-263-7 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM2585SX-12/NOPB | Texas Instruments | IC REG MULT CONFG 12V 3A TO263 | 100% | View |
| LM2585S-12/NOPB | Texas Instruments | IC REG MULT CONFG 12V 3A TO263 | 100% | View |
| LM2586S-12/NOPB | Texas Instruments | IC REG MULT CONFG 12V 3A TO263-7 | 100% | View |
| LM2587S-12/NOPB | Texas Instruments | IC REG MULT CONFG 12V 5A TO263 | 94% | View |
| LM2586SX-3.3/NOPB | Texas Instruments | IC REG MULTI CONFG 3.3V 3A TO263 | 82% | View |
| LM2585S-5.0/NOPB | Texas Instruments | IC REG MULTI CONFG 5V 3A TO263-5 | 82% | View |
Submit your RFQ for LM2586S-12 and get a quote within 24 hours.
