LM2585 4V TO 40V, 3A STEP-UP WID

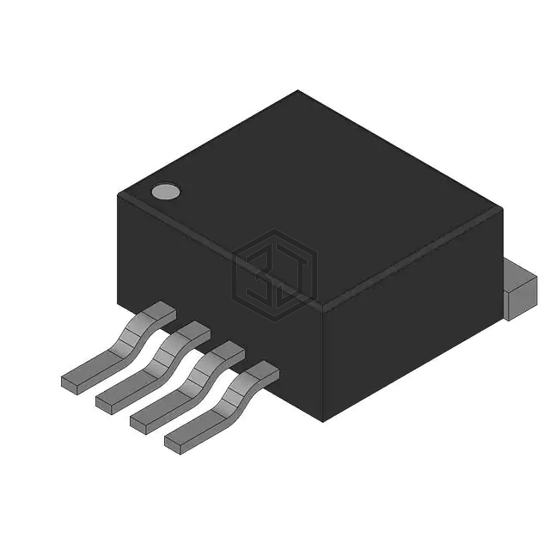

LM2585S-12 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by National Semiconductor. LM2585 4V TO 40V, 3A STEP-UP WID. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - output 3A (Switch).
In Stock: 5,442
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, Forward Converter |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4V |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 12V |
| Voltage - Output (Max) | - |
| Current - Output | 3A (Switch) |
| Frequency - Switching | 100kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | DDPAK/TO-263-5 |
LM2585S-12 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM2587S-12 | Texas Instruments | IC REG MULT CONFG 12V 5A TO263 | 94% | View |
| LM2588SX-12 | Texas Instruments | IC REG MULT CONFG 12V 5A TO263-7 | 94% | View |
| LM2585SX-5.0/NOPB | Texas Instruments | IC REG MULTI CONFG 5V 3A TO263-5 | 82% | View |
| LM2586S-5.0 | Texas Instruments | IC REG MULTI CONFG 5V 3A TO263-7 | 82% | View |
| LM2586SX-5.0 | Texas Instruments | IC REG MULTI CONFG 5V 3A TO263-7 | 82% | View |
| LM2587S-5.0/NOPB | Texas Instruments | IC REG MULTI CONFG 5V 5A TO263-5 | 75% | View |
Submit your RFQ for LM2585S-12 and get a quote within 24 hours.
