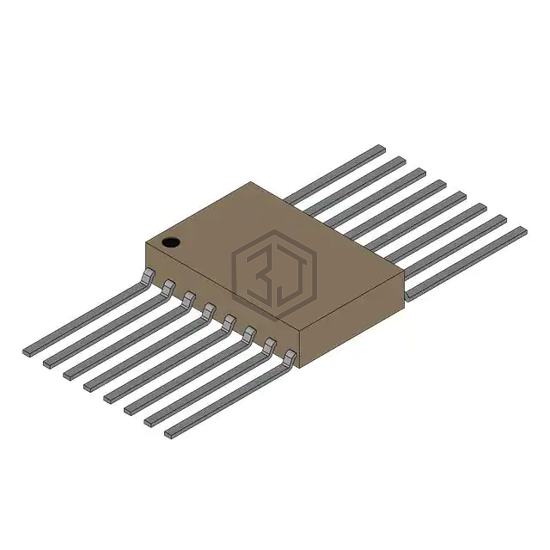

IC FF D-TYPE SNGL 4BIT 16CDIP
74S175DC is a Logic - Flip Flops manufactured by National Semiconductor. IC FF D-TYPE SNGL 4BIT 16CDIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), voltage - supply 4.75V ~ 5.25V, package / case 16-CDIP (0.300", 7.62mm).
In Stock: 2,802
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Complementary |
| Number of Elements | 1 |
| Number of Bits per Element | 4 |
| Clock Frequency | 75 MHz |
| Max Propagation Delay @ V, Max CL | 12ns @ 5V, 15pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Iq) | 96 mA |
| Input Capacitance | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 16-CDIP |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DM74S175N | Fairchild Semiconductor | IC FF D-TYPE SNGL 4BIT 16DIP | 94% | View |
| SN74S175N | Texas Instruments | IC FF D-TYPE SNGL 4BIT 16DIP | 90% | View |
| SN74AS175BN | Texas Instruments | IC FF D-TYPE SNGL 4BIT 16DIP | 82% | View |
| CD74ACT175E | Texas Instruments | IC FF D-TYPE SNGL 4BIT 16DIP | 77% | View |
| CD74ACT175EG4 | Texas Instruments | IC FF D-TYPE SNGL 4BIT 16DIP | 77% | View |
| SN74HC175N | Texas Instruments | IC FF D-TYPE SNGL 4BIT 16DIP | 64% | View |
Submit your RFQ for 74S175DC and get a quote within 24 hours.
