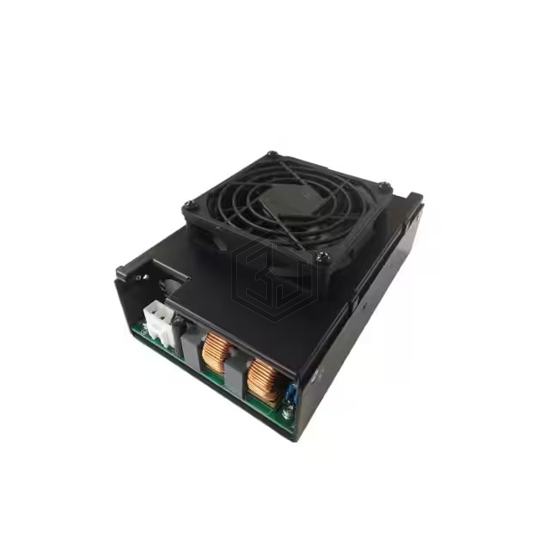

AC/DC 650W, 6"X4" U-CHANNEL, 24V
PQU650M-24P is a AC DC Converters manufactured by Murata Power Solutions Inc.. AC/DC 650W, 6"X4" U-CHANNEL, 24V. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 6.00" L x 4.00" W x 1.69" H (152.4mm x 101.6mm x 42.9mm).
In Stock: 17
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 27.1 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 650W |
| Applications | Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 94% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 6.00" L x 4.00" W x 1.69" H (152.4mm x 101.6mm x 42.9mm) |
| Approval Agency | CB, CE, cTUVus, TUV, UKCA |
| Standard Number | 60601-1 |
Submit your RFQ for PQU650M-24P and get a quote within 24 hours.
