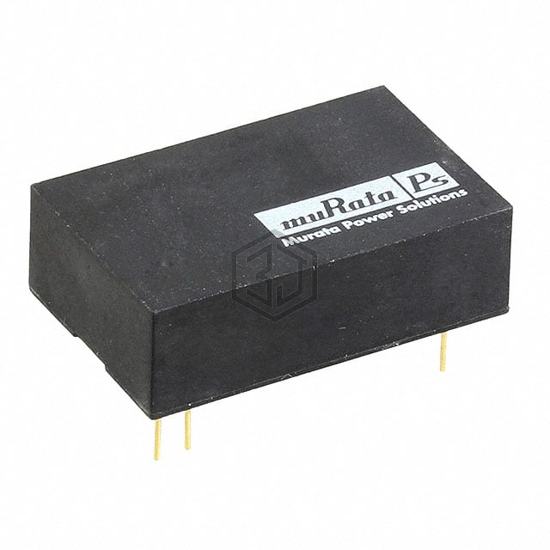

DC DC CONVERTER 15V 6W
NCM6S0515EC is a DC DC Converters manufactured by Murata Power Solutions Inc.. DC DC CONVERTER 15V 6W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 24-DIP Module, 7 Leads, current - output (max) 400mA.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 9V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 400mA |
| Power (Watts) | 6 W |
| Voltage - Isolation | 5.2 kV |
| Applications | ITE (Commercial), Medical |
| Features | Remote On/Off, OTP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 82% |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 7 Leads |
| Size / Dimension | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for NCM6S0515EC and get a quote within 24 hours.
