FIXED IND 680UH 3A 135 MOHM SMD

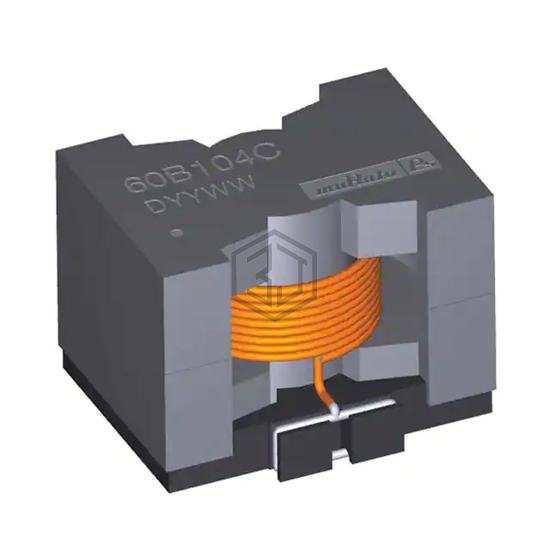

60B684C is a Fixed Inductors manufactured by Murata Power Solutions Inc.. FIXED IND 680UH 3A 135 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 3 A.
In Stock: 3,327
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 680 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 3 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 135mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 1.59MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.063" L x 0.768" W (27.00mm x 19.50mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
Submit your RFQ for 60B684C and get a quote within 24 hours.
