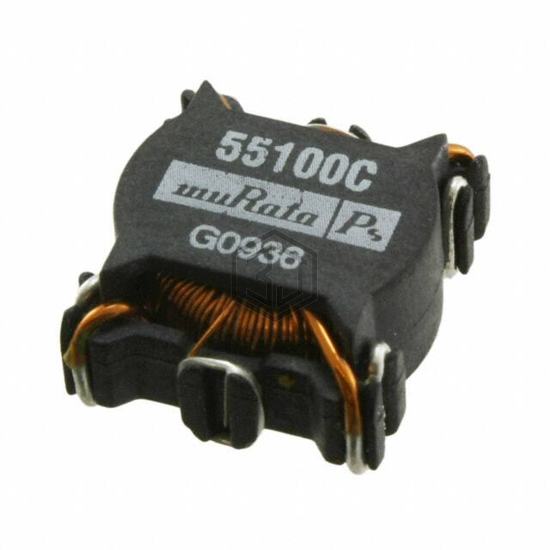

CURR SENSE XFMR 1:1:100 15A SMD
55100C is a Current Sense Transformers manufactured by Murata Power Solutions Inc.. CURR SENSE XFMR 1:1:100 15A SMD. Key specifications: mounting type Surface Mount, size / dimension 0.496" L x 0.575" W (12.60mm x 14.60mm), frequency range 50kHz ~ 500kHz.
In Stock: 5,437
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Frequency Range | 50kHz ~ 500kHz |
| Type | Invasive |
| Current Rating (Amps) | - |
| Inductance | 14.8 mH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1:1:100 |
| Current Ratio | - |
| DC Resistance (DCR) | 2.3mOhm Primary, 850mOhm Secondary |
| Ratings | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.496" L x 0.575" W (12.60mm x 14.60mm) |
| Height - Seated (Max) | 0.280" (7.10mm) |
| Termination Style | - |
Submit your RFQ for 55100C and get a quote within 24 hours.
