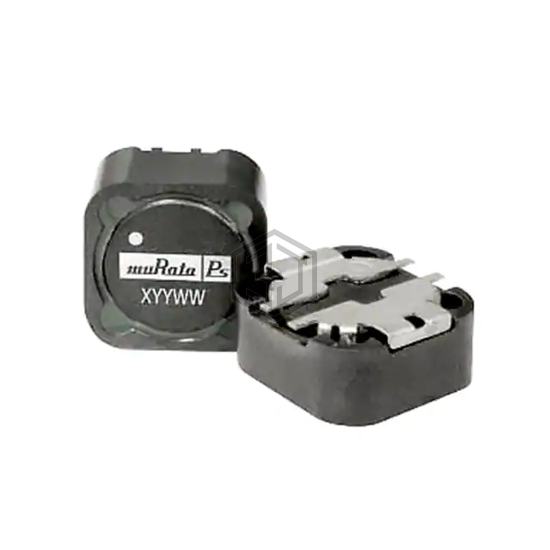

FIXED IND 6.8UH 5.1A 21MOHM SMD
486R8SC is a Fixed Inductors manufactured by Murata Power Solutions Inc.. FIXED IND 6.8UH 5.1A 21MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, 4 Lead, current rating (amps) 5.1 A.
In Stock: 493
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 6.8 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 5.1 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 21mOhm Max |
| Q @ Freq | 34 @ 1MHz |
| Frequency - Self Resonant | 26MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 4 Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.480" L x 0.480" W (12.20mm x 12.20mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
Submit your RFQ for 486R8SC and get a quote within 24 hours.
