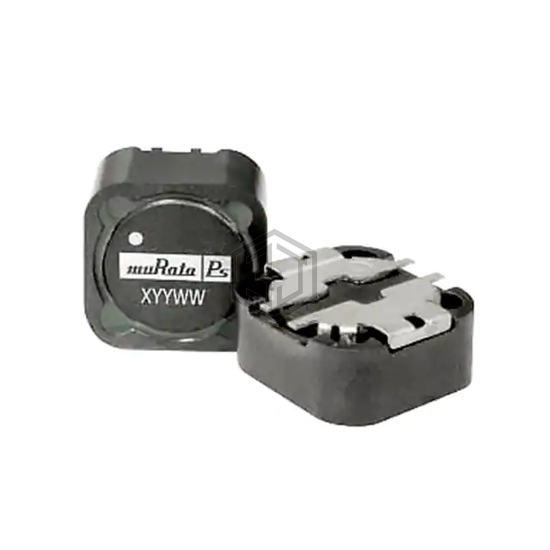

FIXED IND 15UH 3.7A 40 MOHM SMD
48150SC is a Fixed Inductors manufactured by Murata Power Solutions Inc.. FIXED IND 15UH 3.7A 40 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, 4 Lead, current rating (amps) 3.7 A.
In Stock: 293
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.7 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 40mOhm Max |
| Q @ Freq | 31 @ 1MHz |
| Frequency - Self Resonant | 17MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 4 Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.480" L x 0.480" W (12.20mm x 12.20mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
