FIXED IND 220UH 800MA 629MOHM SM

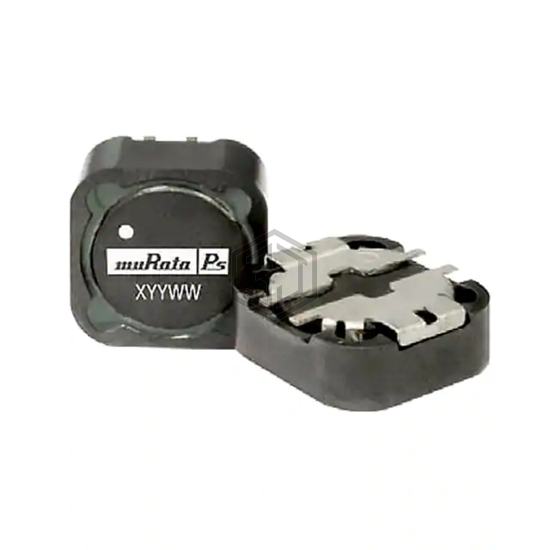

47221SC is a Fixed Inductors manufactured by Murata Power Solutions Inc.. FIXED IND 220UH 800MA 629MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, 4 Lead, current rating (amps) 800 mA.
In Stock: 659
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 220 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 629mOhm Max |
| Q @ Freq | 20 @ 800kHz |
| Frequency - Self Resonant | 6MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 4 Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.480" L x 0.480" W (12.20mm x 12.20mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for 47221SC and get a quote within 24 hours.
