FIXED IND 10UH 3.8A 32.3MOHM SMD

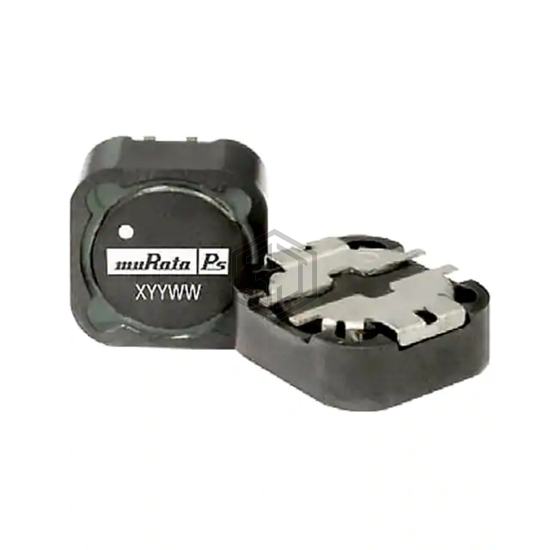

47100SC is a Fixed Inductors manufactured by Murata Power Solutions Inc.. FIXED IND 10UH 3.8A 32.3MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, 4 Lead, current rating (amps) 3.8 A.
In Stock: 647
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.8 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 32.3mOhm Max |
| Q @ Freq | 22 @ 1MHz |
| Frequency - Self Resonant | 22MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 4 Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.480" L x 0.480" W (12.20mm x 12.20mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for 47100SC and get a quote within 24 hours.
