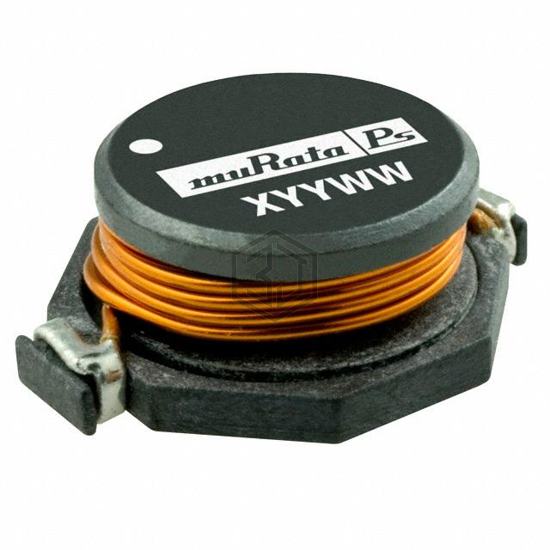

FIXED IND 330UH 950MA 575MOHM SM
28334C is a Fixed Inductors manufactured by Murata Power Solutions Inc.. FIXED IND 330UH 950MA 575MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 950 mA.
In Stock: 55
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 330 µH |
| Tolerance | - |
| Current Rating (Amps) | 950 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 575mOhm Max |
| Q @ Freq | 30.8 @ 800kHz |
| Frequency - Self Resonant | 5MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.728" L x 0.598" W (18.50mm x 15.20mm) |
| Height - Seated (Max) | 0.299" (7.60mm) |
Submit your RFQ for 28334C and get a quote within 24 hours.
