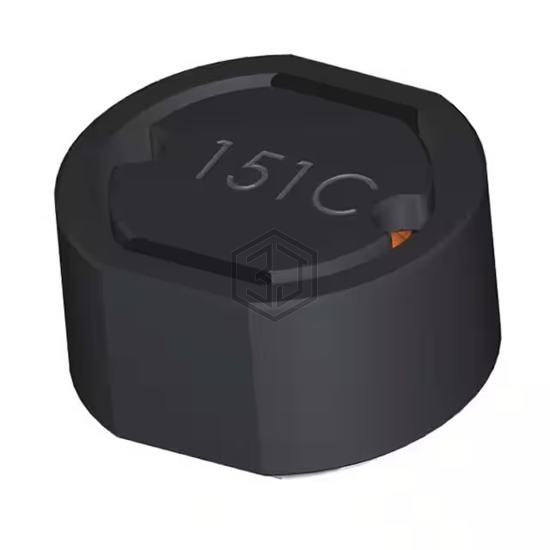

FIXED IND 100UH 520MA 540MOHM SM
24S101C is a Fixed Inductors manufactured by Murata Power Solutions Inc.. FIXED IND 100UH 520MA 540MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 520 mA.
In Stock: 391
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 100 µH |
| Tolerance | - |
| Current Rating (Amps) | 520 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 540mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 6.2MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.303" L x 0.280" W (7.70mm x 7.10mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
Submit your RFQ for 24S101C and get a quote within 24 hours.
