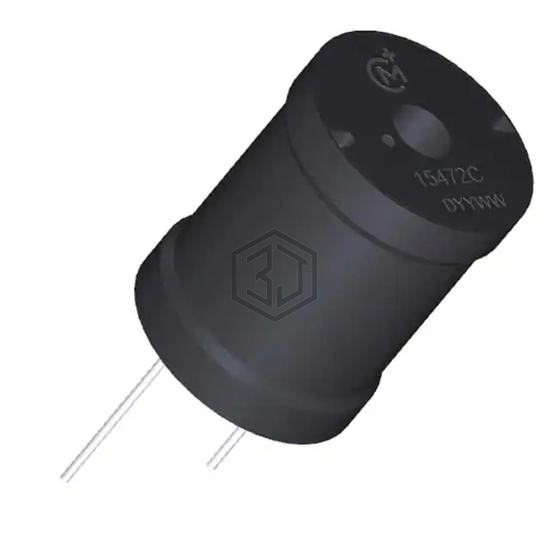

FIXED IND 4.7UH 11.7A 6.48 MOHM
15472C is a Fixed Inductors manufactured by Murata Power Solutions Inc.. FIXED IND 4.7UH 11.7A 6.48 MOHM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Vertical Cylinder, current rating (amps) 11.7 A.
In Stock: 128
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 11.7 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 6.48mOhm Max |
| Q @ Freq | 131 @ 1MHz |
| Frequency - Self Resonant | 60MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.661" Dia (16.80mm) |
| Height - Seated (Max) | 0.839" (21.30mm) |
