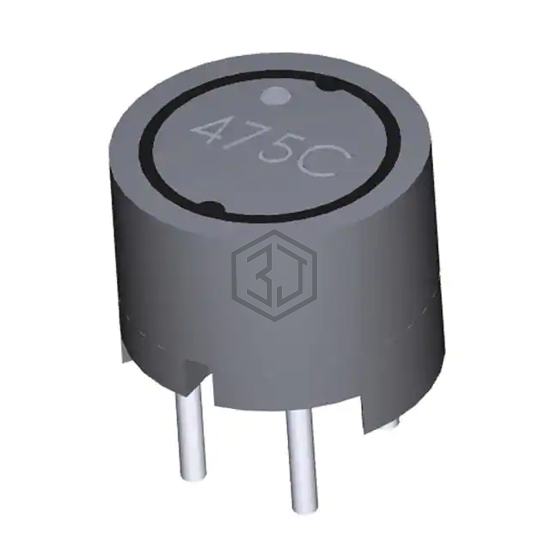

FIXED IND 1MH 400MA 2.3 OHM TH
12LRS105C is a Fixed Inductors manufactured by Murata Power Solutions Inc.. FIXED IND 1MH 400MA 2.3 OHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Vertical Cylinder, 4 Leads, current rating (amps) 400 mA.
In Stock: 1,255
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 1 mH |
| Tolerance | ±15% |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.3Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder, 4 Leads |
| Supplier Device Package | - |
| Size / Dimension | 0.413" Dia (10.50mm) |
| Height - Seated (Max) | 0.335" (8.50mm) |
Submit your RFQ for 12LRS105C and get a quote within 24 hours.
