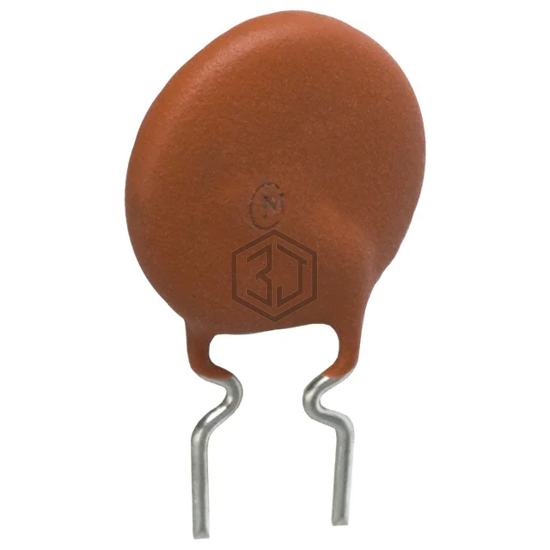

PTC RESET FUSE 30V 867MA RADIAL
PTGL12AS0R8K2B51B0 is a PTC Resettable Fuses manufactured by Murata Electronics. PTC RESET FUSE 30V 867MA RADIAL. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 85°C, package / case Radial, Disc, current - max 7 A.
In Stock: 29
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Ceramic |
| Voltage - Max | 30V |
| Current - Max | 7 A |
| Current - Hold (Ih) (Max) | 867 mA |
| Current - Trip (It) | 1.153 A |
| Time to Trip | - |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Resistance - 25°C (Typ) | 800 mOhms |
| Operating Temperature | -30°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.453" Dia x 0.138" T (11.50mm x 3.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.197" (5.00mm) |
Submit your RFQ for PTGL12AS0R8K2B51B0 and get a quote within 24 hours.
