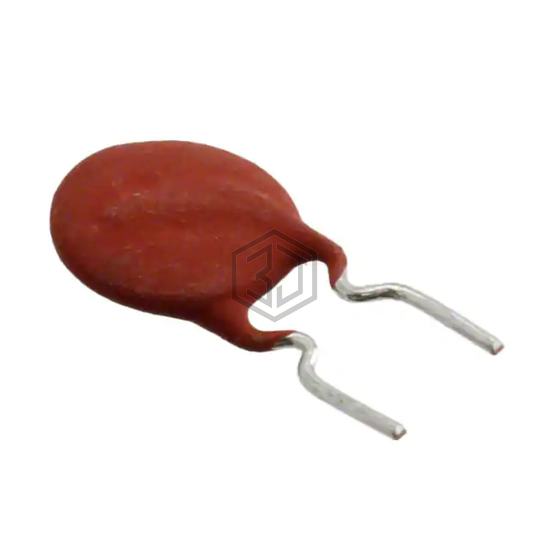

PTC RESET FUSE 30V 340MA RADIAL
PTGL07AR4R6H2B51B0 is a PTC Resettable Fuses manufactured by Murata Electronics. PTC RESET FUSE 30V 340MA RADIAL. Key specifications: mounting type Through Hole, operating temperature -10°C ~ 60°C, package / case Radial, Disc, current - max 2 A.
In Stock: 117
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Ceramic |
| Voltage - Max | 30V |
| Current - Max | 2 A |
| Current - Hold (Ih) (Max) | 340 mA |
| Current - Trip (It) | 610 mA |
| Time to Trip | - |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Resistance - 25°C (Typ) | 4.6 Ohms |
| Operating Temperature | -10°C ~ 60°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) |
| Height - Seated (Max) | 0.528" (13.40mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.197" (5.00mm) |
