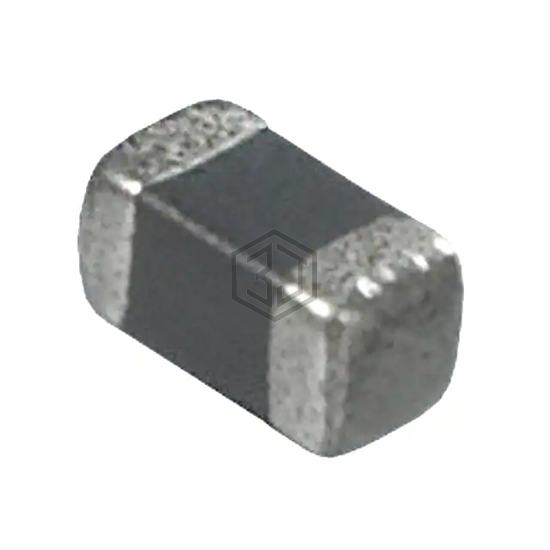

PTC RESET FUSE 16V 10MA 0603
PRG18BB471MS1RB is a PTC Resettable Fuses manufactured by Murata Electronics. PTC RESET FUSE 16V 10MA 0603. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 85°C, package / case 0603 (1608 Metric), current - max 40 mA.
In Stock: 7,213
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Ceramic |
| Voltage - Max | 16V |
| Current - Max | 40 mA |
| Current - Hold (Ih) (Max) | 10 mA |
| Current - Trip (It) | 21 mA |
| Time to Trip | - |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Resistance - 25°C (Typ) | 470 Ohms |
| Operating Temperature | -20°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.037" (0.95mm) |
| Lead Spacing | - |
Submit your RFQ for PRG18BB471MS1RB and get a quote within 24 hours.
