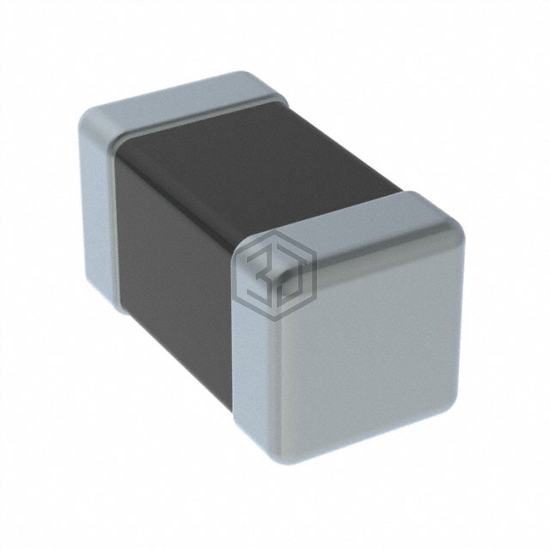

PTC RESET FUSE 30V 38MA 0402
PRG15BC330MM1RC is a PTC Resettable Fuses manufactured by Murata Electronics. PTC RESET FUSE 30V 38MA 0402. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 85°C, package / case 0402 (1005 Metric), current - max 1.2 A.
In Stock: 132,587
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Ceramic |
| Voltage - Max | 30V |
| Current - Max | 1.2 A |
| Current - Hold (Ih) (Max) | 38 mA |
| Current - Trip (It) | 73 mA |
| Time to Trip | - |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Resistance - 25°C (Typ) | 33 Ohms |
| Operating Temperature | -20°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.022" (0.55mm) |
| Lead Spacing | - |
Submit your RFQ for PRG15BC330MM1RC and get a quote within 24 hours.
