CMC 6A 2LN 1KOHM SMD AEC-Q200

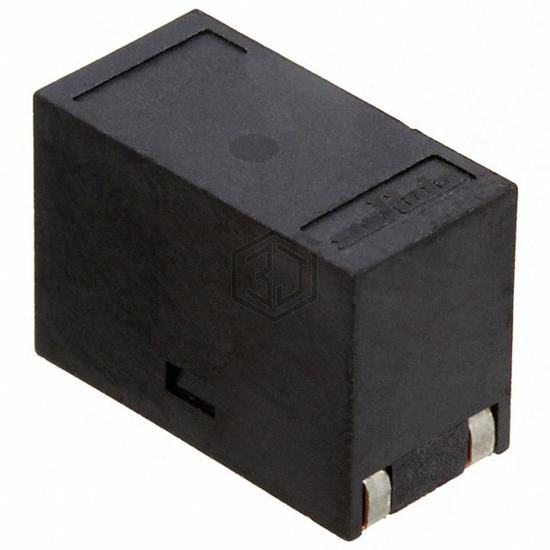

PLT10HH1026R0PNL is a Common Mode Chokes manufactured by Murata Electronics. CMC 6A 2LN 1KOHM SMD AEC-Q200. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage rating - dc 100V, package / case Vertical, 4 PC Pad.
In Stock: 3,293
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Impedance @ Frequency | 1 kOhms @ 10 MHz |
| Inductance @ Frequency | - |
| Current Rating (Max) | 6A |
| DC Resistance (DCR) (Max) | 8mOhm (Typ) |
| Voltage Rating - DC | 100V |
| Voltage Rating - AC | - |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.508" L x 0.358" W (12.90mm x 9.10mm) |
| Height (Max) | 0.370" (9.40mm) |
| Package / Case | Vertical, 4 PC Pad |
Submit your RFQ for PLT10HH1026R0PNL and get a quote within 24 hours.
