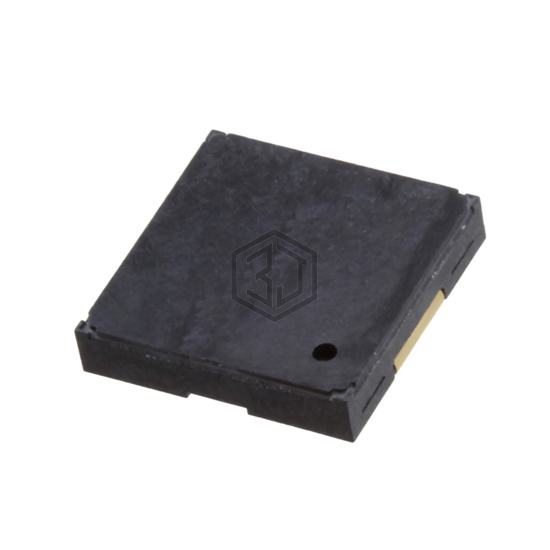

BUZZER PIEZO 1.5V 9X9MM SMD
PKMCS0909E4000-R1 is a Alarms, Buzzers, and Sirens manufactured by Murata Electronics. BUZZER PIEZO 1.5V 9X9MM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 1.5 V, size / dimension 0.354" L x 0.354" W (9.00mm x 9.00mm).
In Stock: 67,306
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 1.5 V |
| Voltage Range | 12.5V (Max) |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 65dB @ 1.5V, 10cm |
| Current - Supply | - |
| Port Location | Side |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.354" L x 0.354" W (9.00mm x 9.00mm) |
| Height - Seated (Max) | 0.075" (1.90mm) |
Submit your RFQ for PKMCS0909E4000-R1 and get a quote within 24 hours.
