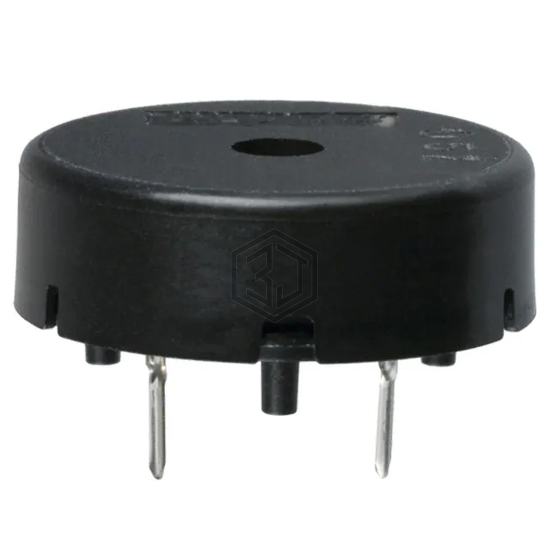

BUZZER PIEZO 22MM TH
PKM22EPPH4005-B0 is a Alarms, Buzzers, and Sirens manufactured by Murata Electronics. BUZZER PIEZO 22MM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 70°C, size / dimension 0.866" Dia (22.00mm), termination PC Pins.
In Stock: 8,521
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | - |
| Voltage Range | 30V (Max) |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | Continuous |
| Duration | - |
| Sound Pressure Level (SPL) | 75dB @ 3V, 10cm |
| Current - Supply | - |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.343" (8.70mm) |
Submit your RFQ for PKM22EPPH4005-B0 and get a quote within 24 hours.
