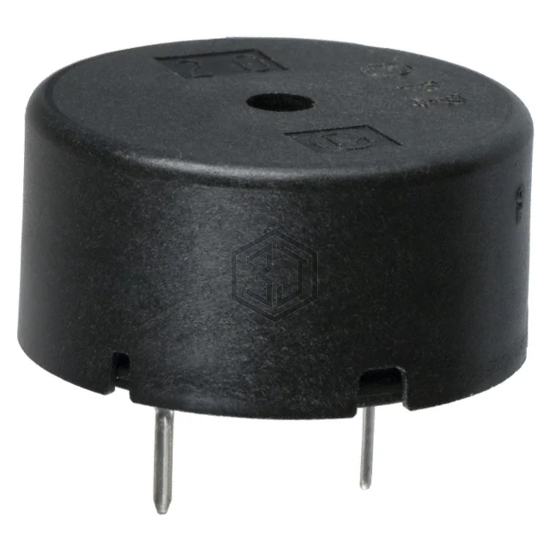

BUZZER PIEZO 1.5V 22MM TH
PKM22EPPH2001-B0 is a Alarms, Buzzers, and Sirens manufactured by Murata Electronics. BUZZER PIEZO 1.5V 22MM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 70°C, voltage - rated 1.5 V, size / dimension 0.866" Dia (22.00mm).
In Stock: 11,442
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 1.5 V |
| Voltage Range | 30V (Max) |
| Frequency | 2kHz |
| Technology | Piezo |
| Operating Mode | Ringer |
| Duration | - |
| Sound Pressure Level (SPL) | 70dB @ 1.5V, 10cm |
| Current - Supply | - |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
Submit your RFQ for PKM22EPPH2001-B0 and get a quote within 24 hours.
