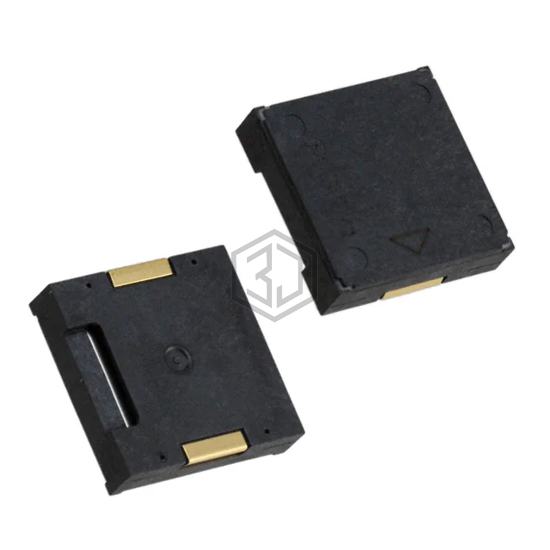

BUZZER PIEZO 1.5V 12X12MM SMD
PKLCS1212E24A0-R1 is a Alarms, Buzzers, and Sirens manufactured by Murata Electronics. BUZZER PIEZO 1.5V 12X12MM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 1.5 V, size / dimension 0.472" L x 0.472" W (12.00mm x 12.00mm).
In Stock: 20,690
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 1.5 V |
| Voltage Range | 12.5V (Max) |
| Frequency | 2.4kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 75dB @ 1.5V, 10cm |
| Current - Supply | - |
| Port Location | Side |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.126" (3.20mm) |
Submit your RFQ for PKLCS1212E24A0-R1 and get a quote within 24 hours.
