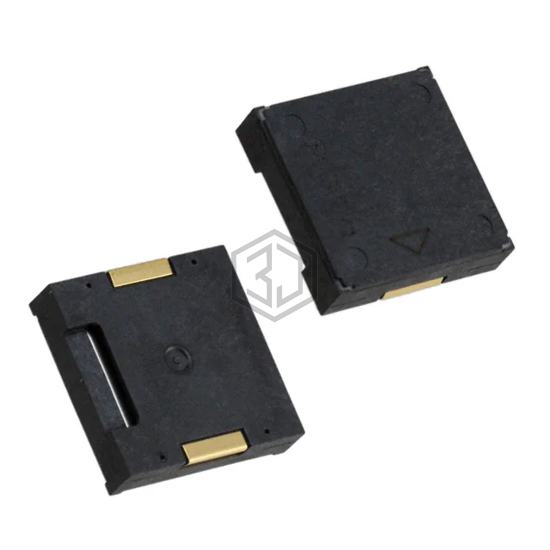

BUZZER PIEZO 1.5V 12X12MM SMD
PKLCS1212E2000-R1 is a Alarms, Buzzers, and Sirens manufactured by Murata Electronics. BUZZER PIEZO 1.5V 12X12MM SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 70°C, voltage - rated 1.5 V, size / dimension 0.472" L x 0.472" W (12.00mm x 12.00mm).
In Stock: 32,423
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 1.5 V |
| Voltage Range | 12.5V (Max) |
| Frequency | 2kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 70dB @ 1.5V, 10cm |
| Current - Supply | - |
| Port Location | Side |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for PKLCS1212E2000-R1 and get a quote within 24 hours.
