FIXED IND 33UH 1.3A 105MOHM SMD

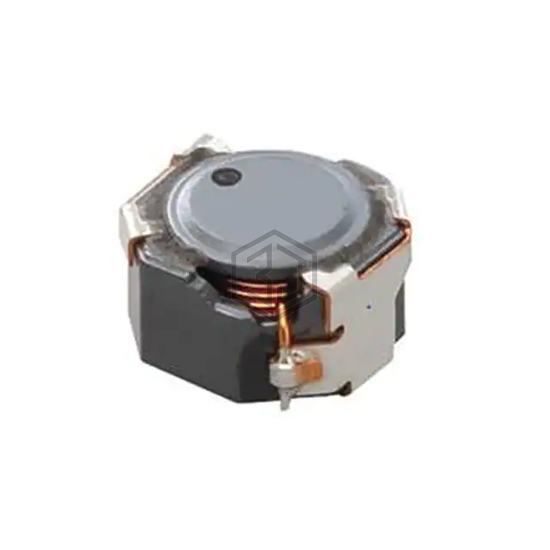

MDH6045C-330MB=P3 is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 33UH 1.3A 105MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, current rating (amps) 1.3 A.
In Stock: 24
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.3 A |
| Current - Saturation (Isat) | 960mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 105mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.248" L x 0.236" W (6.30mm x 6.00mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |
Submit your RFQ for MDH6045C-330MB=P3 and get a quote within 24 hours.
