FIXED IND 22UH 2.7A 40 MOHM SMD

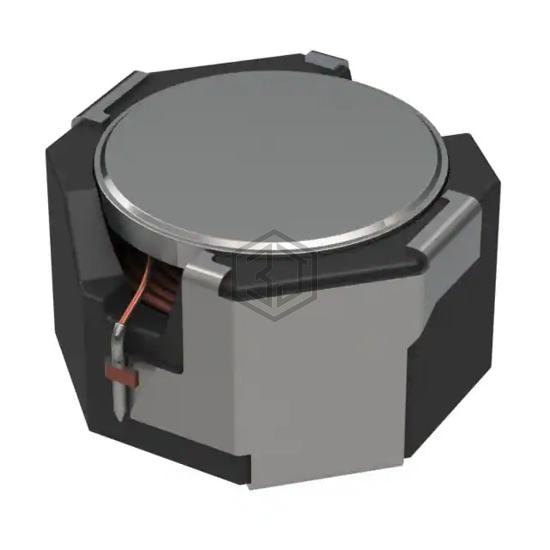

MDH10060C-220MA=P3 is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 22UH 2.7A 40 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, current rating (amps) 2.7 A.
In Stock: 980
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.7 A |
| Current - Saturation (Isat) | 2.8A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 40mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.398" L x 0.394" W (10.10mm x 10.00mm) |
| Height - Seated (Max) | 0.248" (6.30mm) |
Submit your RFQ for MDH10060C-220MA=P3 and get a quote within 24 hours.
