FIXED IND 910NH 380MA 1.68OHM SM

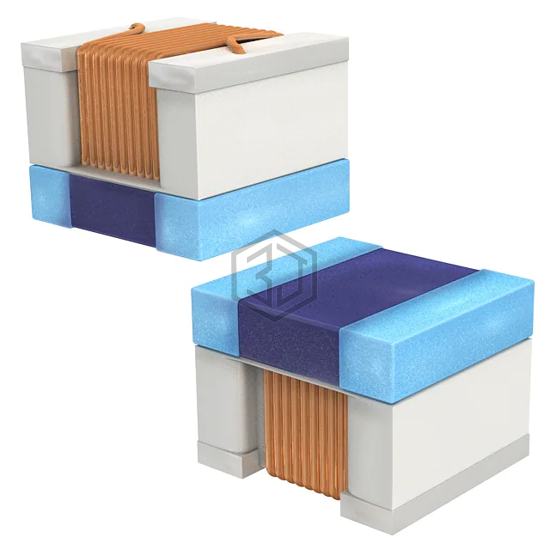

LQW2UASR91F00L is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 910NH 380MA 1.68OHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 1008 (2520 Metric), current rating (amps) 380 mA.
In Stock: 1,902
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Non-Magnetic |
| Inductance | 910 nH |
| Tolerance | ±1% |
| Current Rating (Amps) | 380 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.68Ohm Max |
| Q @ Freq | 35 @ 50MHz |
| Frequency - Self Resonant | 320MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.103" L x 0.096" W (2.62mm x 2.45mm) |
| Height - Seated (Max) | 0.080" (2.03mm) |
Submit your RFQ for LQW2UASR91F00L and get a quote within 24 hours.
