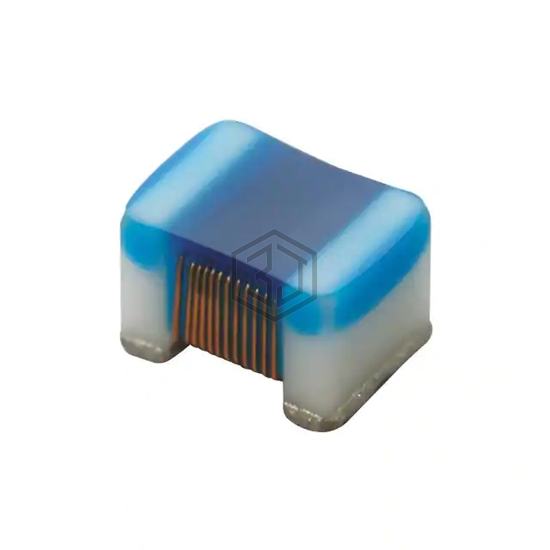

FIXED IND 2.7NH 910MA 30MOHM SMD
LQW2BAS2N7J00L is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 2.7NH 910MA 30MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0805 (2015 Metric), current rating (amps) 910 mA.
In Stock: 1,737
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 2.7 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 910 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 30mOhm Max |
| Q @ Freq | 80 @ 1.5GHz |
| Frequency - Self Resonant | 15GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2015 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.082" L x 0.060" W (2.09mm x 1.53mm) |
| Height - Seated (Max) | 0.060" (1.52mm) |
Submit your RFQ for LQW2BAS2N7J00L and get a quote within 24 hours.
