FIXED IND 1UH 170MA 2.4 OHM SMD

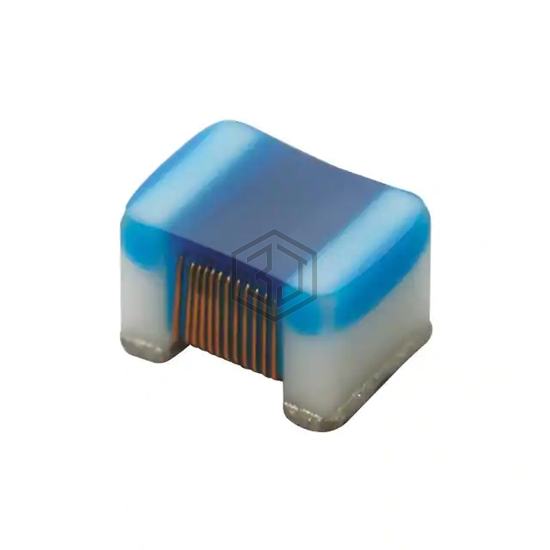

LQW2BAS1R0J00L is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 1UH 170MA 2.4 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0805 (2015 Metric), current rating (amps) 170 mA.
In Stock: 1,493
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 1 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 170 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.4Ohm Max |
| Q @ Freq | 23 @ 50MHz |
| Frequency - Self Resonant | 200MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2015 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.082" L x 0.060" W (2.09mm x 1.53mm) |
| Height - Seated (Max) | 0.060" (1.52mm) |
Submit your RFQ for LQW2BAS1R0J00L and get a quote within 24 hours.
