FIXED IND 470NH 160MA 1.3OHM SMD

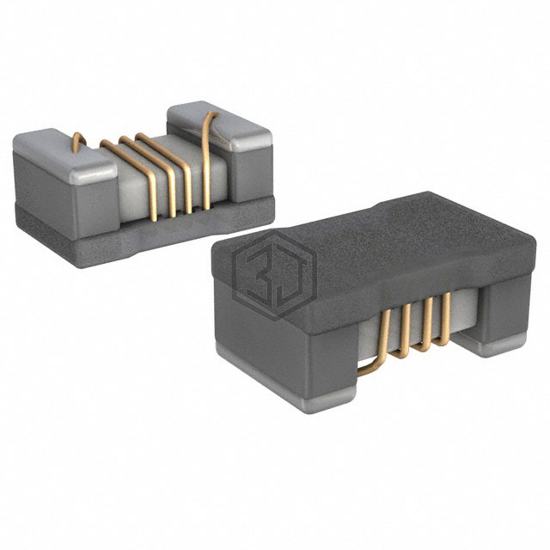

LQW21HNR47J00L is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 470NH 160MA 1.3OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 0805 (2012 Metric), current rating (amps) 160 mA.
In Stock: 327
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 470 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 160 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.3Ohm Max |
| Q @ Freq | 30 @ 100MHz |
| Frequency - Self Resonant | 620MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
Submit your RFQ for LQW21HNR47J00L and get a quote within 24 hours.
