FIXED IND 1UH 115MA 2.86 OHM SMD

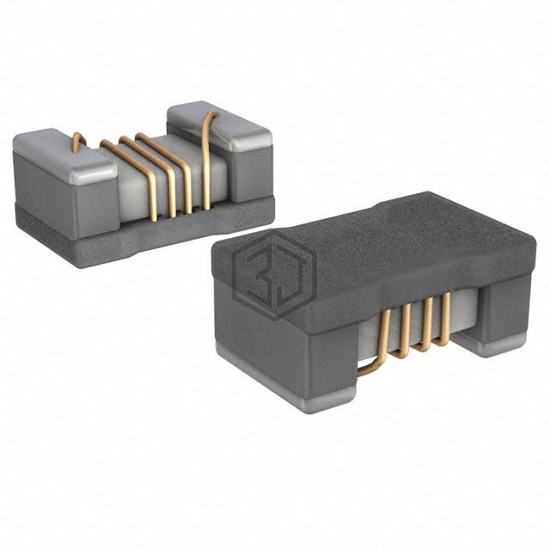

LQW21HN1R0J00L is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 1UH 115MA 2.86 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 0805 (2012 Metric), current rating (amps) 115 mA.
In Stock: 18,937
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 115 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.86Ohm Max |
| Q @ Freq | 35 @ 100MHz |
| Frequency - Self Resonant | 450MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
Submit your RFQ for LQW21HN1R0J00L and get a quote within 24 hours.
