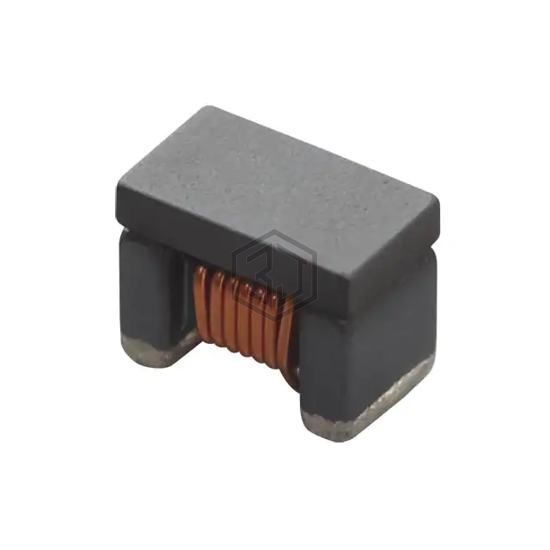

FIXED IND 1.5UH 550MA POWRTRN
LQW21FT1R5M0HL is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 1.5UH 550MA POWRTRN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0805 (2012 Metric), current rating (amps) 500 mA.
In Stock: 1,490
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 500 mA |
| Current - Saturation (Isat) | 550mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 180mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 260MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
Submit your RFQ for LQW21FT1R5M0HL and get a quote within 24 hours.
