WOUND TYPE SMD 0402 (1005)SIZE T

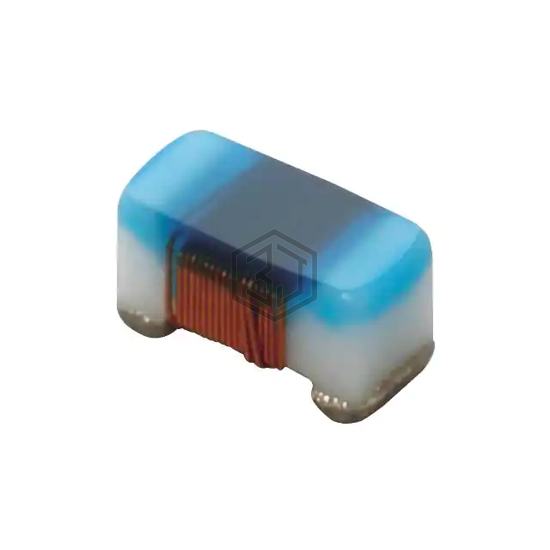

LQW15AN3N3C10D is a Fixed Inductors manufactured by Murata Electronics. WOUND TYPE SMD 0402 (1005)SIZE T. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0402 (1005 Metric), current rating (amps) 900 mA.
In Stock: 630
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Non-Magnetic |
| Inductance | 3.3 nH |
| Tolerance | ±0.2nH |
| Current Rating (Amps) | 900 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 40mOhm Max |
| Q @ Freq | 30 @ 250MHz |
| Frequency - Self Resonant | 12GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.039" L x 0.024" W (1.00mm x 0.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
Submit your RFQ for LQW15AN3N3C10D and get a quote within 24 hours.
