FIXED IND 10NH 150MA 1 OHM SMD

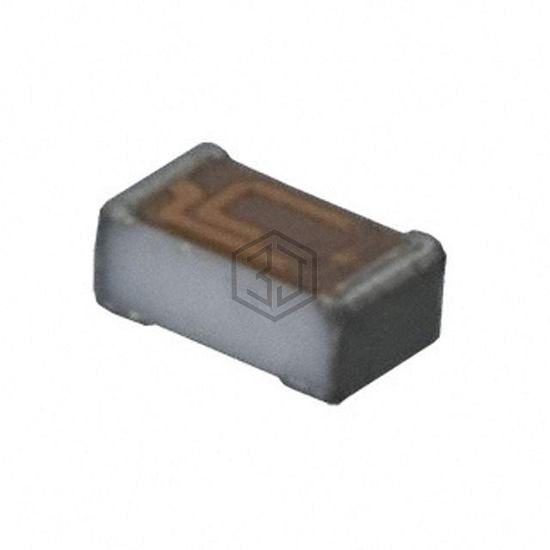

LQP18MN10NG02D is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 10NH 150MA 1 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 0603 (1608 Metric), current rating (amps) 150 mA.
In Stock: 3,356
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Type | Thick Film |
| Material - Core | Non-Magnetic |
| Inductance | 10 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 150 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1Ohm Max |
| Q @ Freq | 17 @ 500MHz |
| Frequency - Self Resonant | 3.4GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
Submit your RFQ for LQP18MN10NG02D and get a quote within 24 hours.
