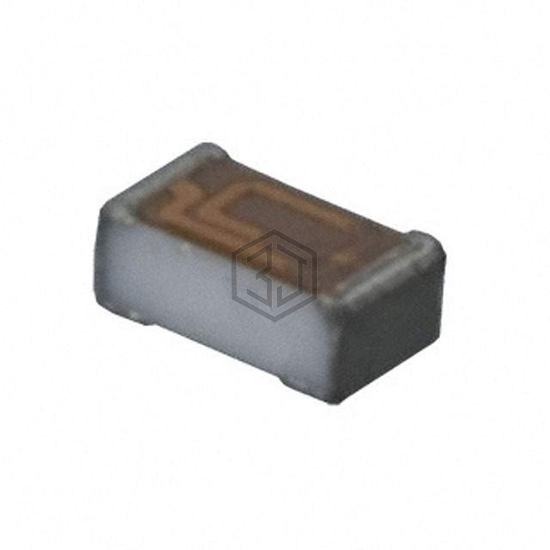

FIXED IND 4.3NH 160MA 600MOHM SM
LQP15MN4N3B02D is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 4.3NH 160MA 600MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 0402 (1005 Metric), current rating (amps) 160 mA.
In Stock: 2,820
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Type | Thick Film |
| Material - Core | Non-Magnetic |
| Inductance | 4.3 nH |
| Tolerance | ±0.1nH |
| Current Rating (Amps) | 160 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 600mOhm Max |
| Q @ Freq | 13 @ 500MHz |
| Frequency - Self Resonant | 6GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.018" (0.45mm) |
Submit your RFQ for LQP15MN4N3B02D and get a quote within 24 hours.
