FIXED IND 0.6NH 1A 50 MOHM SMD

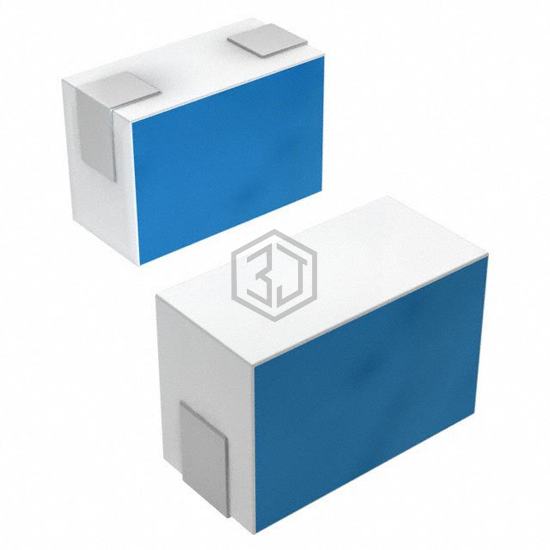

LQP03TQ0N6C02D is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 0.6NH 1A 50 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0201 (0603 Metric), current rating (amps) 1 A.
In Stock: 81
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Thick Film |
| Material - Core | Non-Magnetic |
| Inductance | 0.6 nH |
| Tolerance | ±0.2nH |
| Current Rating (Amps) | 1 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 50mOhm Max |
| Q @ Freq | 17 @ 500MHz |
| Frequency - Self Resonant | 20GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.013" (0.33mm) |
