FIXED IND 270NH 70MA 11 OHM SMD

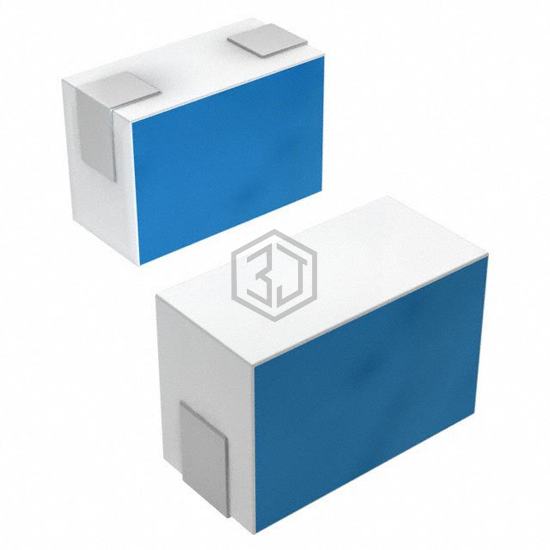

LQP03HQR27H02D is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 270NH 70MA 11 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0201 (0603 Metric), current rating (amps) 70 mA.
In Stock: 14,505
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Thin Film |
| Material - Core | - |
| Inductance | 270 nH |
| Tolerance | ±3% |
| Current Rating (Amps) | 70 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 11Ohm Max |
| Q @ Freq | 9 @ 100MHz |
| Frequency - Self Resonant | 650MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.017" (0.42mm) |
Submit your RFQ for LQP03HQR27H02D and get a quote within 24 hours.
