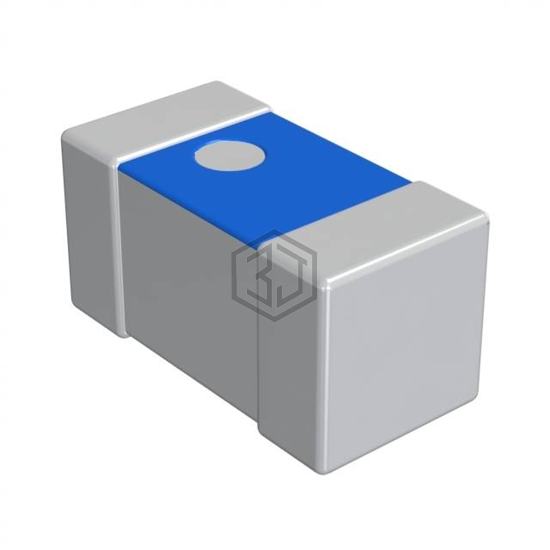

FIXED IND 10NH 140MA 2.5 OHM SMD
LQP02TN10NH02D is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 10NH 140MA 2.5 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 01005 (0402 Metric), current rating (amps) 140 mA.
In Stock: 56,142
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Thick Film |
| Material - Core | Non-Magnetic |
| Inductance | 10 nH |
| Tolerance | ±3% |
| Current Rating (Amps) | 140 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.5Ohm Max |
| Q @ Freq | 8 @ 500MHz |
| Frequency - Self Resonant | 4GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 01005 (0402 Metric) |
| Supplier Device Package | 01005 (0402 Metric) |
| Size / Dimension | 0.016" L x 0.008" W (0.40mm x 0.20mm) |
| Height - Seated (Max) | 0.009" (0.23mm) |
Submit your RFQ for LQP02TN10NH02D and get a quote within 24 hours.
