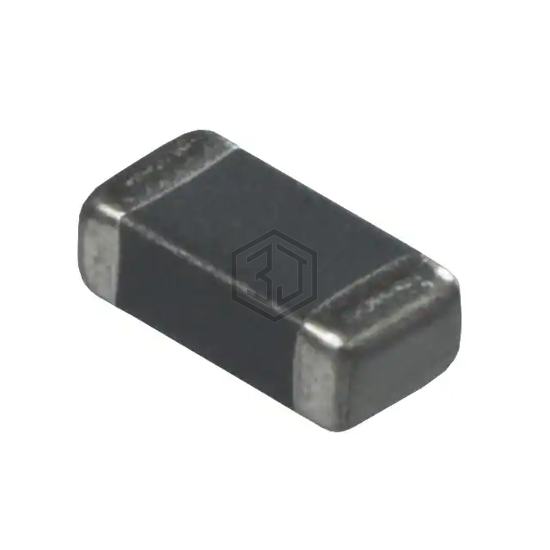

FIXED IND 2.2UH 900MA 238MOHM SM
LQM31PN2R2M00L is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 2.2UH 900MA 238MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 1206 (3216 Metric), current rating (amps) 900 mA.
In Stock: 4,047
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | - |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 900 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 238mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 40MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.037" (0.95mm) |
Submit your RFQ for LQM31PN2R2M00L and get a quote within 24 hours.
