FIXED IND 100NH 650MA 512.5 MOHM

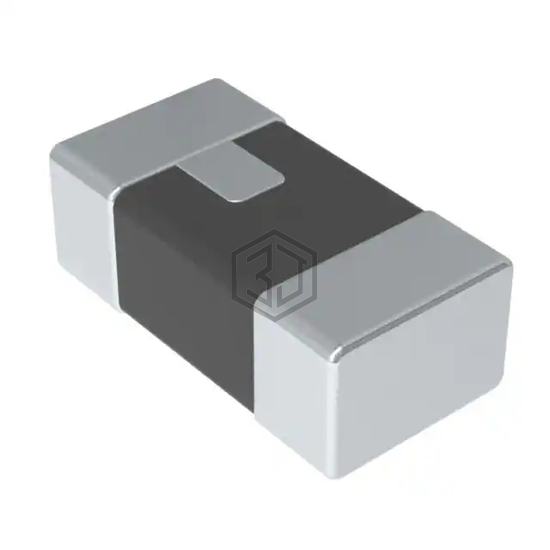

LQM18JNR10J00D is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 100NH 650MA 512.5 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 0603 (1608 Metric), current rating (amps) 650 mA.
In Stock: 22
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 100 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 650 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 512.5mOhm Max |
| Q @ Freq | 8 @ 25MHz |
| Frequency - Self Resonant | 200MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
