FIXED IND 2.2UH 3.2A 40.6MOHM SM

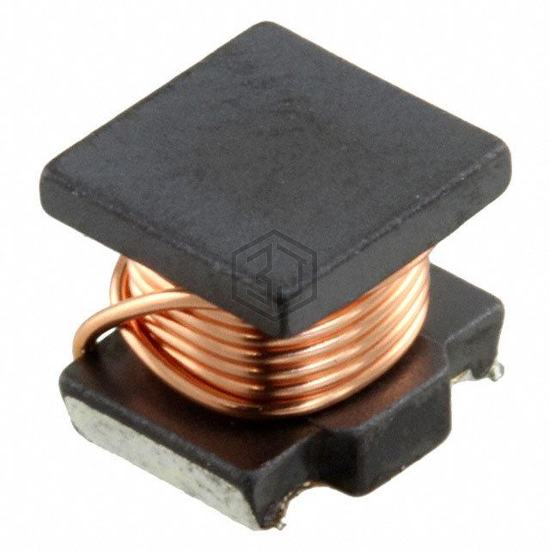

LQH55DN2R2M03L is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 2.2UH 3.2A 40.6MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 80°C, package / case 2220 (5750 Metric), current rating (amps) 3.2 A.
In Stock: 4,097
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.2 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 40.6mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 80MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 80°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2220 (5750 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.224" L x 0.197" W (5.70mm x 5.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for LQH55DN2R2M03L and get a quote within 24 hours.
