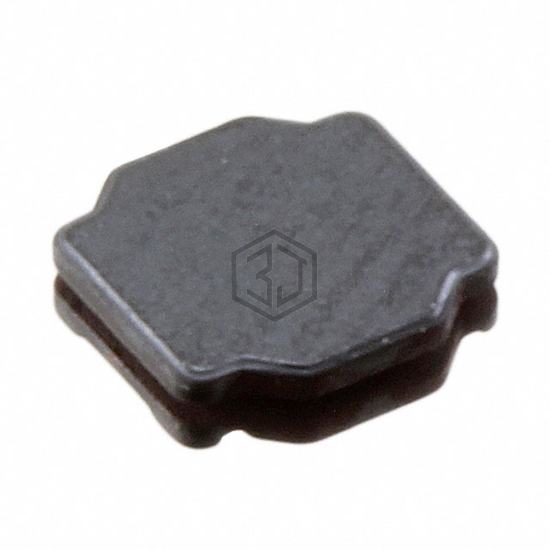

FIXED IND 22UH 550MA 576MOHM SMD
LQH44PN220MJ0L is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 22UH 550MA 576MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 550 mA.
In Stock: 880
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 550 mA |
| Current - Saturation (Isat) | 400mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 576mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 18MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1515 (4040 Metric) |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for LQH44PN220MJ0L and get a quote within 24 hours.
