FIXED IND 1UH 2.45A 36 MOHM SMD

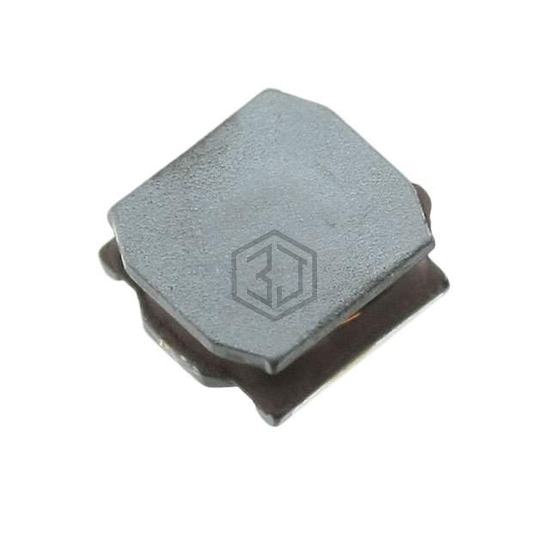

LQH44PN1R0NP0L is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 1UH 2.45A 36 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 2.45 A.
In Stock: 13,720
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 2.45 A |
| Current - Saturation (Isat) | 2.95A |
| Shielding | Shielded |
| DC Resistance (DCR) | 36mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 90MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1515 (4040 Metric) |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
Submit your RFQ for LQH44PN1R0NP0L and get a quote within 24 hours.
