FIXED IND 4.7UH 650MA 130MOHM SM

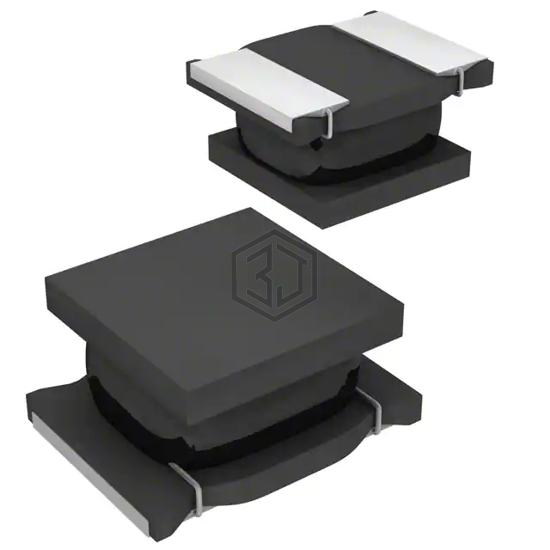

LQH32DN4R7M53L is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 4.7UH 650MA 130MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 650 mA.
In Stock: 426
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 650 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 130mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 43MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1210 (3225 Metric) |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.067" (1.70mm) |
Submit your RFQ for LQH32DN4R7M53L and get a quote within 24 hours.
