FIXED IND 220UH 70MA 10.92OHM SM

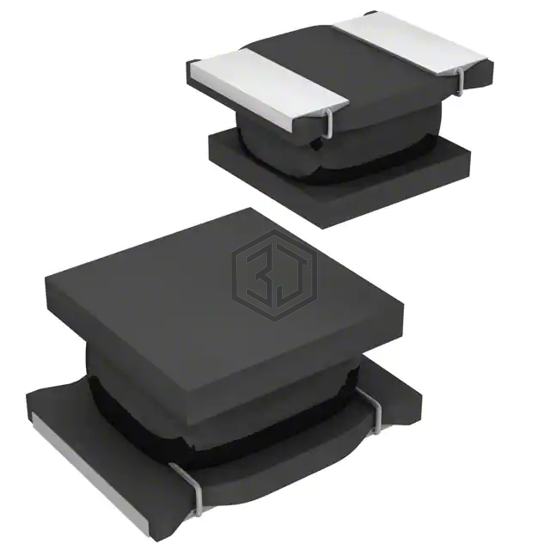

LQH32CN221K23L is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 220UH 70MA 10.92OHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 70 mA.
In Stock: 40,135
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 220 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 70 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 10.92Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 6.8MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1210 (3225 Metric) |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.067" (1.70mm) |
Submit your RFQ for LQH32CN221K23L and get a quote within 24 hours.
