FIXED IND 880NH 180MA 860MOHM SM

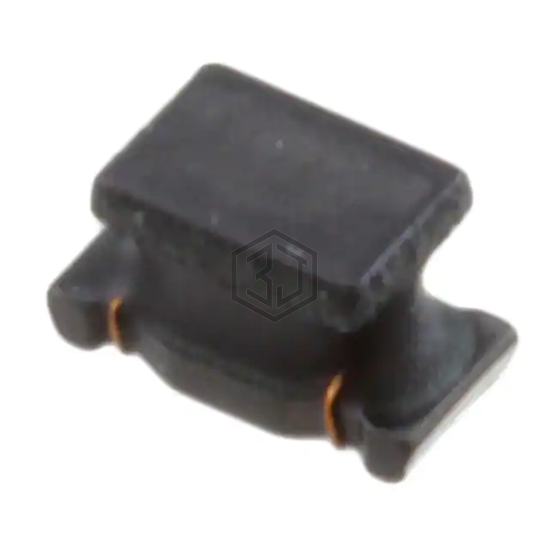

LQH31HNR88K03L is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 880NH 180MA 860MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1206 (3216 Metric), current rating (amps) 180 mA.
In Stock: 3,906
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 880 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 180 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 860mOhm Max |
| Q @ Freq | 60 @ 100MHz |
| Frequency - Self Resonant | 200MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
