FIXED IND 120NH 970MA 112MOHM SM

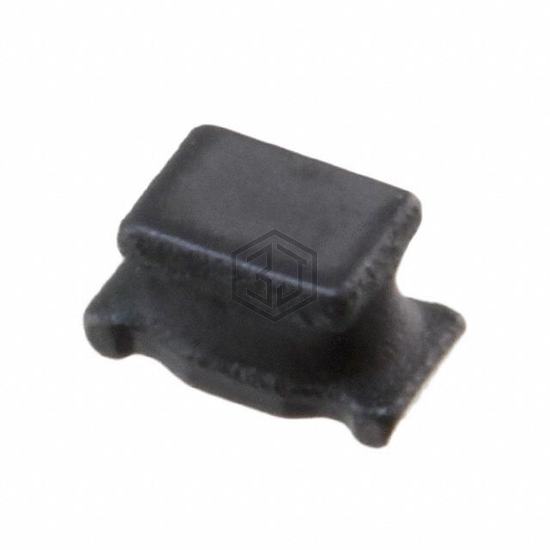

LQH31CNR12M03L is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 120NH 970MA 112MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1206 (3216 Metric), current rating (amps) 970 mA.
In Stock: 2,144
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 120 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 970 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 112mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 250MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for LQH31CNR12M03L and get a quote within 24 hours.
