FIXED IND 2.2UH 500MA 546MOHM SM

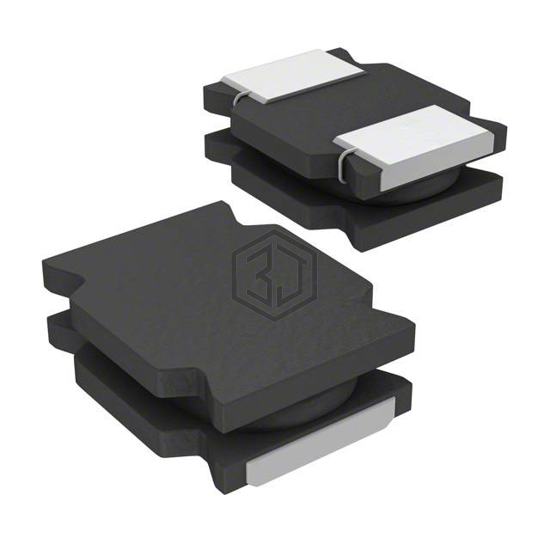

LQH2MCN2R2M52L is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 2.2UH 500MA 546MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 0806 (2016 Metric), current rating (amps) 500 mA.
In Stock: 6,160
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 500 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 546mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 125MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.037" (0.95mm) |
Submit your RFQ for LQH2MCN2R2M52L and get a quote within 24 hours.
